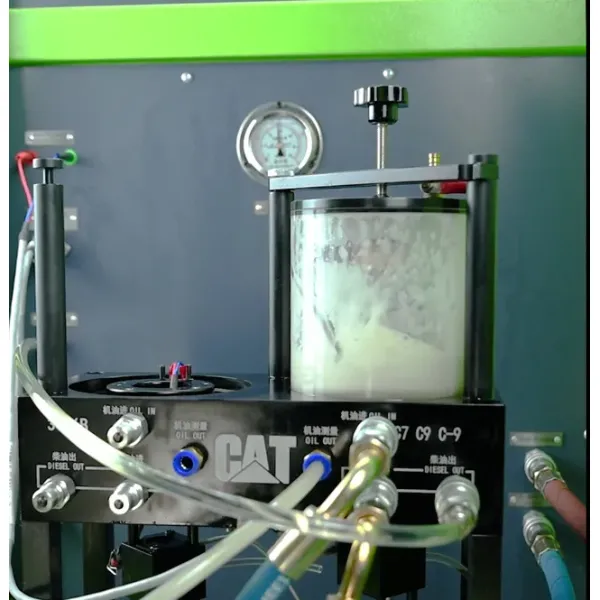

Product Introduction JZ-726 is a versatile and high-capacity test bench that can handle a wide range of fuel system components from the Euro-3 to Euro-6 emission standards. Its automated controls and extensive testing capabilities make it a useful tool for repair and maintenance of modern diesel fuel systems. It can test thousands of electronic unit injectors and electronic unit pumps, and the experimental data are complete.
Functions Description
Standard functions: 1. Test unit injectors (EUI)
2. Test unit pumps (EUP)
3. Testing HEUI injectors
4. Test smart injectors
Optional Functions: 1. Test X15, Q60 single HPI
2. Test common rail oil pump
Hardware Configuration: 1. Fuel tank oil level lower limit alarm
2. Real-time display injection/return curves
3. Test oil automatic heating/cooling control
4. Equipped multiple high-precision filters
Product Details
Technical Parameters | Technical Parameters |
| Output | 7.5 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Rail Pressure | 0~2700 Bar |
| Rail Pressure Precision | ±5 Bar |
| Oil Tank Volume | Diesel: 20L
Engine: 20L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 1030 kg |
| Packing Size | 2000*1200*1950 mm |
| Speed Control Model | Frequency Converter |
| Temperature Control System | Air Conditioning Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor | Imported Original Vane Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40% Deposit, the rest paid before shipment |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |
Testing Scope
Related Products
Our Company
Exhibition
Why Choose Us 1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of B-osch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc. Contact Us Djamel | Sales
